3031 - Front panel


Click to view printable version of this page

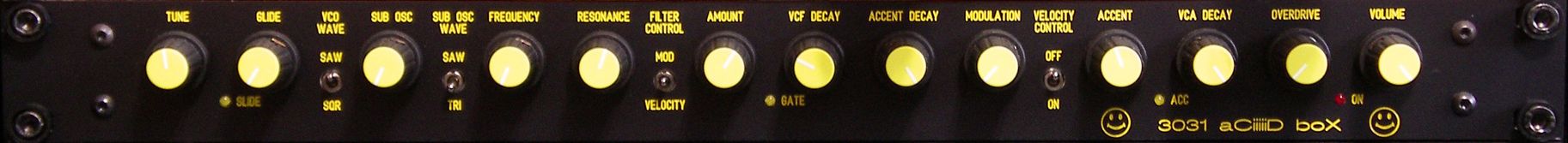

This is the 1U front panel design I used for my 3031.  It is very similar to Oakley Sound's standard design except for the WASP-style colour scheme and the extra holes for fitting to a Maplin rack mount case.  I got the panel made by Schaeffer AG - you can download the .fpd files below.

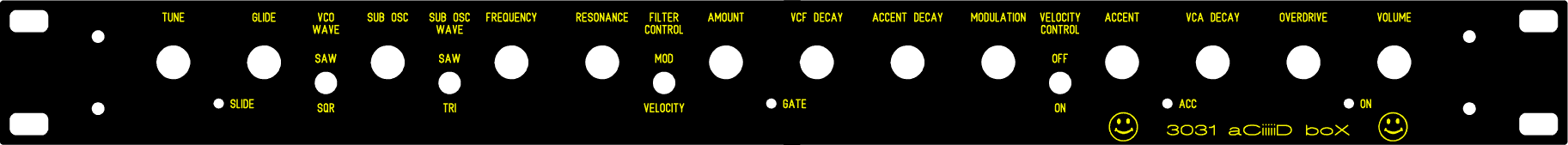

Front Panel Designer file:
tb3031_panel.fpd

Here is a Front Panel Designer file that includes elements to show the knobs and LEDs:
tb3031_visual.fpd
(this is intended as a visual guide only, not for manufacture)
